hybridsol PVT modules - electricity and heat from one system
Der hybrid collector or the PVT module supplies approx. 6,000 kWh of electricity and approx. 10,500 kWh of heat per year through the combination of photovoltaics and solar thermal energy, e.g. with 16 collectors on an area of 25 square meters.
Don't wait any longer and calculate your individual degree of self-sufficiency with a PVT module here.
Hybrid solar modules - the revolution: energy transition done right. Independent power and heat supply in the hands of citizens with PVT modules
With a rated output of approx. 1,100 watts (440 watts electrical and 660 watts thermal), the hybrid collector or PVT module currently has the highest energy yield of all solar modules available on the market in relation to the collector area.
The energy yield thus corresponds approximately to the distribution in a private home, where one third is required for electricity and two thirds for heat. This makes the solar hybrid technology or PVT system particularly suitable for roof systems, where the area available for solar systems is limited and the demand for a technology with a high proportion of self-consumption is constantly growing.
A solar system with 20 hybrid collectors requires an area of approx. 32 square meters and produces approx. 6,000 to 7,000 kilowatt hours of electricity and approx. 11,000 kilowatt hours of heat per year.
With the appropriate storage systems for electricity and heat, around 75 % of annual electricity consumption and around 80 to 90 % of annual heat consumption can be generated.

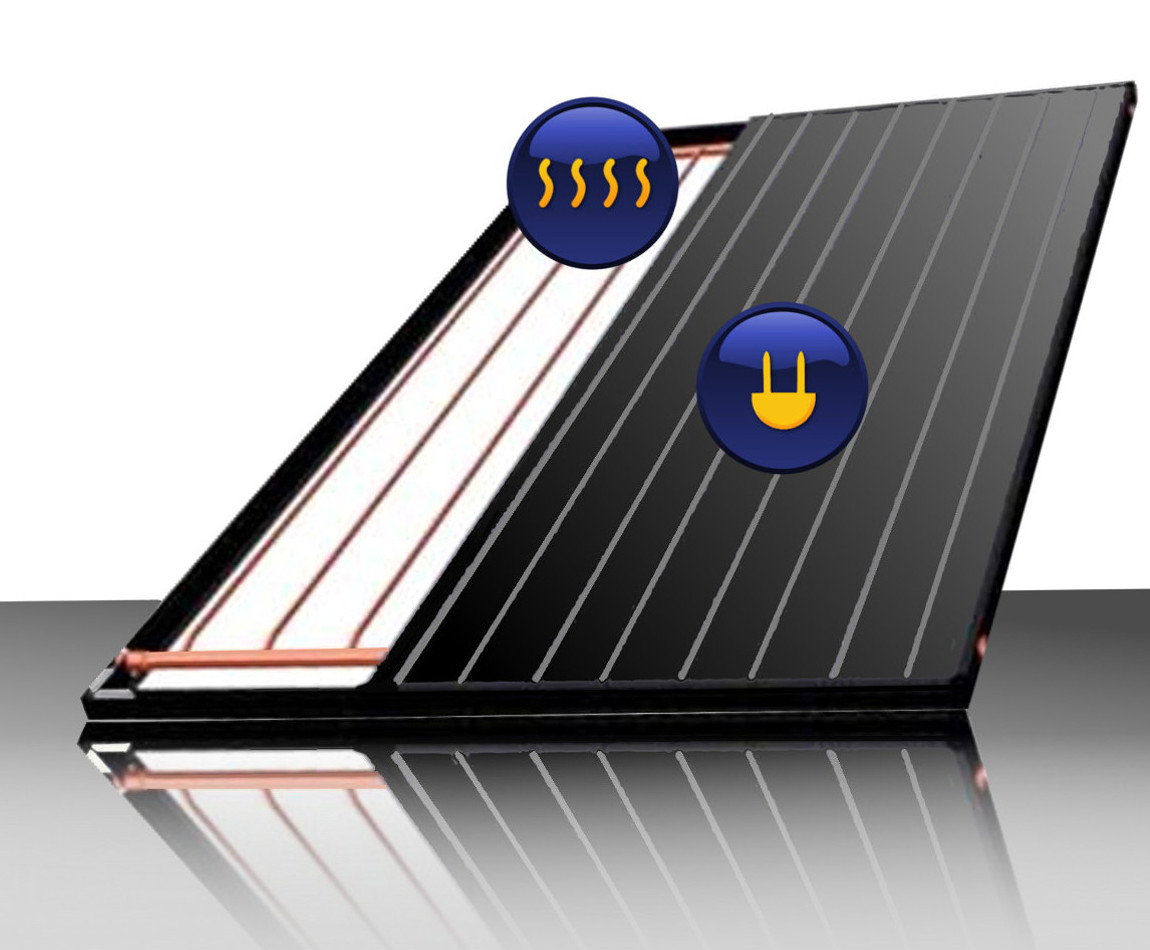

Structure of a hybrid solar module / PVT solar module
Info film on PVT heat pump systems PVT system in an apartment building
Functional principle 1 of hybridsol
Functional principle 2 of hybridsol
hybridsol power plant PVT system, the ENERGIEHELDEN solution for your self-sufficiency
How the hybridsol power plant or PVT system for your home works
At the hybridsol power plant the generation of Electricity (electrical energy) and Heat (thermal energy) into one solution. By coupling adsorber technology, the system can even be used for cooling without having to use other, external energy sources. The technology developed in Germany together with the Fraunhofer Institute developed technology enables strong internal yields with at least 1,100 watt peak per Hybrid solar module / PVT module with the same module size as a conventional photovoltaic module and enables the best possible energy supply thanks to intelligent control.
The silicon cells at the top transport electrical charge carriers from the sun as direct current, which is converted into alternating current that can be used directly for the refrigerator or lighting with the help of downstream inverters.
If not enough consumers consume electricity, the surplus can be stored. These storage units can be electrical or thermal storage units.
The Solar hybrid module in addition to Electricity also Heat transport. Under the upper Photovoltaic cells is where the solar thermal collector is located, which captures the sun's heat. The heat collector also physically supports the output of the electricity generator by Solar modules cools. The solar heat used can not only be stored in water storage tanks for short-term consumption, but thanks to clever and patented water storage tanks, it can be expanded to any size so that as much energy as possible can be stored from the roof, even when the sun is not shining.
This means that the system is able to transport the heat from summer to winter and the immense combustion of gas or oil is a thing of the past thanks to the permanently higher flow temperatures generated by solar power. The regenerative solar hybrid system can be supplemented with a heat pump. Overall, this type of conversion to renewable energy - made in Germany - guarantees energy savings of at least 50 % to 100 %. Determine your energy savings for your home now.
